A Comprehensive Guide on How to Install PSU – Power Up Your PC with Confidence

In the world of computer building and upgrading, understanding how to install PSU (Power Supply Unit) is crucial for both novice and experienced users alike. The PSU is the heart of your gaming or working rig, providing necessary power to all components. With the right knowledge and tools at your disposal, you can confidently manage this essential part of your computer setup.

Understanding the Role of a Power Supply Unit

Before diving into the detailed steps on how to install PSU, it’s important to grasp its significance in your system. This section will explore what a PSU is, the various types available, and factors to consider when selecting one for your build.

What is a Power Supply Unit?

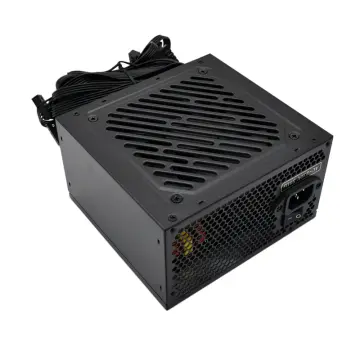

A Power Supply Unit converts electrical power from an outlet into usable power for the internal components of a computer. It supplies power to the motherboard, CPU, graphics card, hard drives, cooling fans, and other peripherals.

The efficiency and reliability of a PSU can significantly impact a computer’s performance. Poor-quality power supplies may lead to unstable voltage outputs, which can damage sensitive components over time. Therefore, choosing the right PSU is not only essential for functionality but also for longevity.

Types of Power Supply Units

There are several types of PSUs available in the market, each designed for different needs and setups:

• ATX Standard PSU: The most common type, ideal for full-sized desktops.
• SFX PSU: A smaller variant used in compact builds; great for mini-tower cases.
• Modular vs Non-Modular: Modular PSUs allow users to detach cables that are not needed, improving cable management. Non-modular units come with pre-attached cables, which can be more cluttered.

Choosing the right type depends largely on your case size and personal preferences regarding cable management.

How to Choose the Right PSU

Selecting the appropriate PSU involves several considerations:

• Wattage: Calculate the total wattage requirement of your components to ensure you have enough power. Tools like online calculators can help you determine this accurately.
• Efficiency Rating: Look for units with an 80 PLUS certification to ensure energy efficiency. The higher the rating, the better the performance and lower the electricity costs.
• Brand Reputation: Choose a well-known brand to ensure quality and reliability. Research user reviews and expert recommendations.

By carefully considering these factors, you can choose the right PSU that meets both your current and future computing needs.

Preparing for Installation – Essential Tools and Components

Once you’ve selected the appropriate PSU for your build, the next step is preparing for installation. Proper preparation ensures a smooth process and minimizes risks during the setup.

Gathering Necessary Tools

Before starting the installation, gather essential tools that will facilitate the process:

• Screwdriver Set: A Phillips-head screwdriver is often sufficient for removing screws from components and securing the PSU in place.
• Anti-static Wrist Strap: Prevent static discharge, which can harm your components. Wearing a wrist strap grounds you effectively.
• Cable Ties: Helpful for organizing cables after installation, improving airflow inside the case.

Having these tools handy will make your installation experience much cleaner and efficient.

Organizing Your Workspace

An organized workspace can significantly enhance your productivity while installing your PSU.

• Clear Surface: Ensure your working area is clean and has ample space to spread out tools and parts.
• Good Lighting: Use adequate light to avoid missing any screws or connections during the installation.
• Safety Measures: Keep liquids away from your workspace and handle components with care to prevent damage.

Taking these preliminary steps creates an inviting, distraction-free environment conducive to a successful installation.

Ensuring Compatibility with Other Components

Before proceeding, double-check the compatibility of your PSU with other components in your build.

• Motherboard Compatibility: Make sure the PSU connectors match your motherboard requirements, such as the 24-pin ATX connector and additional CPU power connectors.
• Case Size: Verify that the PSU fits within your case dimensions. Some cases have specific mounting locations that may restrict certain PSU sizes.
• Cable Lengths: Ensure the included cables are long enough to reach all relevant components without excessive tension.

Compatibility checks are vital for preventing headaches down the line.

Step-by-Step Guide on How to Install PSU

Now that you’re prepared, let’s delve into the nitty-gritty of how to install PSU correctly. Follow these step-by-step instructions, and you’ll be set in no time.

Opening Your Computer Case

The first step in the installation process requires accessing your computer case.

• Remove Side Panel: Most computer cases have screws or latches on the side panel. Unscrew or unlatch them to remove the panel and expose the interior.
• Ground Yourself: Once inside the case, touch a metal surface to discharge any static electricity before touching components.

This gives you safe access to the internal workings of your computer, where the new PSU will reside.

Removing the Old PSU

If you are replacing an existing PSU, follow these guidelines to safely uninstall it.

• Disconnect All Cables: Carefully unplug any cables connected from the PSU to the motherboard, GPU, and storage devices. Note their positions if necessary for easier reconnection later.
• Unscrew the PSU: Locate the screws securing the old power supply to the case. Remove them to free the unit.
• Slide Out the PSU: Gently pull the PSU out from its compartment while ensuring no cables are snagged or damaged in the process.

Removing the old PSU may require some patience, especially if there are numerous cables connected, so take your time.

Installing the New PSU

With the old PSU removed, it’s time to focus on installing the new unit.

• Positioning the PSU: Slide the new PSU into place, aligning it with the screws or mounting points designated by your case.
• Securing the PSU: Use screws to secure the PSU in place firmly. Ensure it is mounted securely to avoid rattling or movement.
• Connecting Cables: Begin reconnecting the cables from the PSU to the motherboard, GPU, and storage devices, based on notes taken during removal. Start with the main 24-pin ATX cable and the 4/8-pin CPU power cable.

Take your time and pay attention to detail during this phase, as proper connections are key to ensuring everything functions smoothly.

Finalizing Connections and Cable Management

After connecting all essential cables, it’s time to tidy up the workspace.

• Organize Cables: Use cable ties to bundle excess cables together neatly. This improves airflow within the case, minimizing overheating risks.
• Check All Connections: Before closing the case, double-check that all cables are securely connected and not at risk of being pinched or dislodged.
• Replace the Side Panel: Reattach the side panel of the case and secure it with screws or latches.

Being meticulous at this stage will save you potential troubleshooting later on.

Testing Your Installation

After completing the installation, it’s important to test the new PSU to ensure it functions correctly.

Initial Power On Procedure

To test your newly installed PSU:

• Connect the Power Cord: Plug in the power cord to the PSU and the wall outlet. Do not turn on just yet.
• Power Up the System: Press the power button on your computer case. Listen for fan activity and observe whether lights on the motherboard illuminate.
• Monitor Performance: If the system powers on, check for any unusual sounds or smells. If everything seems normal, proceed with loading the operating system.

Initial tests are crucial to confirm that your PSU is functioning adequately before further use.

Running Diagnostic Tests

Once your system boots successfully, running some diagnostic tests can provide further assurance.

• Use Monitoring Software: Tools like HWMonitor or MSI Afterburner can help monitor voltages and temperatures to ensure they remain stable.
• Stress Test Your System: Programs such as Prime95 or FurMark can push your components to their limits, helping identify any power-related issues under load.

Performing these tests adds another layer of confidence in your installation work, ensuring that everything is running as smoothly as possible.

Troubleshooting Common Issues

Should you encounter any issues during testing, refer to common troubleshooting solutions:

• No Power: Check connections and ensure that the PSU switch is turned on.
• Random Shutdowns: This could indicate insufficient power delivery, overheating, or faulty hardware. Recheck wattage calculations and component compatibility.
• Unusual Noises: Clicking or grinding sounds may signal a malfunctioning fan or issue within the PSU itself. In such cases, it may warrant replacement.

Being prepared to troubleshoot can save you time and stress if things don’t go perfectly on the first attempt.

FAQs

What tools do I need to install a PSU?

You will need a Phillips-head screwdriver, an anti-static wrist strap, and cable ties for organization.

Can I use any PSU for my computer?

No, ensure that the PSU is compatible with your motherboard and has sufficient wattage for your components.

How do I know if my PSU is failing?

Common symptoms include random shutdowns, failure to power on, or unusual noises coming from the unit.

Is it difficult to install a PSU?

While it requires some technical knowledge, following clear steps makes it manageable for most users.

Should I upgrade my PSU?

Consider upgrading if you’re adding more demanding components to your system or if your current PSU is outdated or not meeting power requirements.

Conclusion

Installing a PSU is a fundamental skill for anyone looking to build or upgrade their computer. By understanding how to install PSU, preparing adequately, and diligently following the outlined steps, even a novice can complete the process successfully. Remember that safety and precision are vital throughout; take your time, and enjoy the satisfaction of powering up your rig with confidence!
